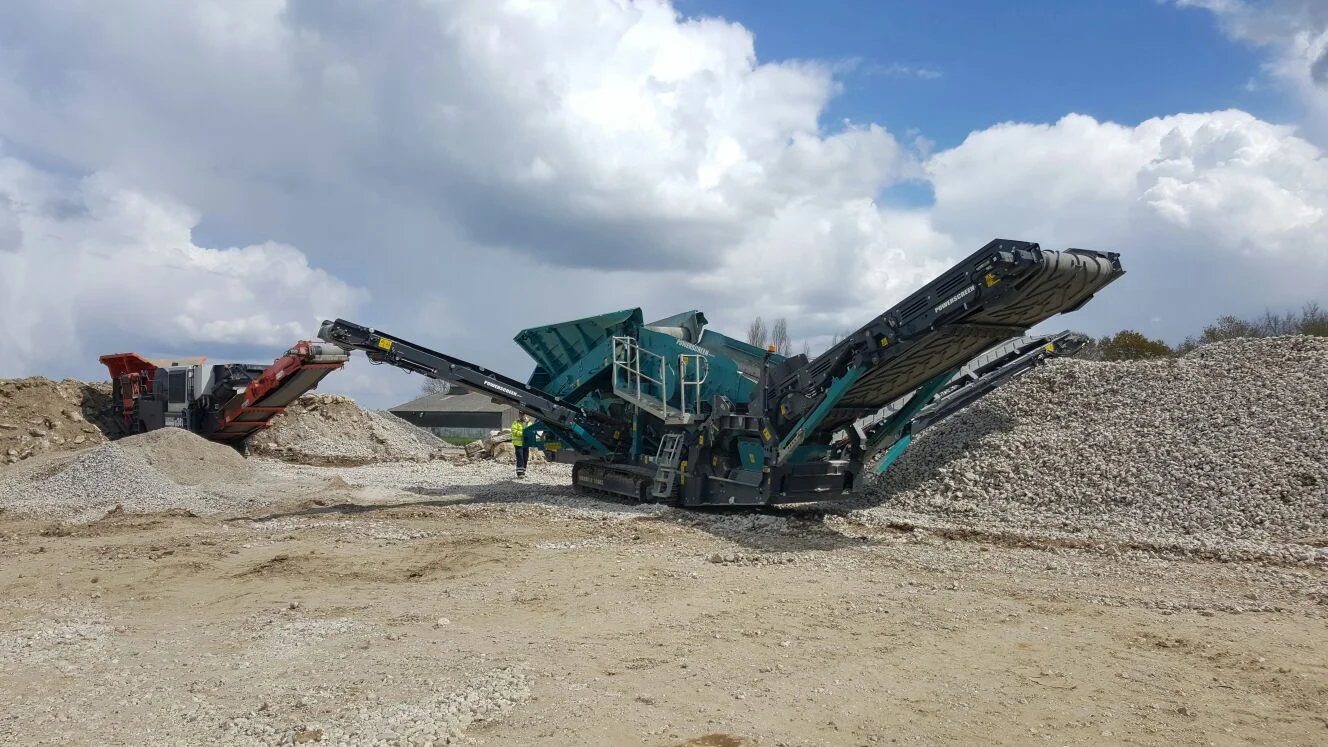

POWERSCREEN® WARRIOR 1400X

The Powerscreen® Warrior 1400X is a flexible screening machine, aimed at operators who require a high performing, heavy duty, versatile machine that remains easy to transport. It offers improved performance, lower operating costs, and easier serviceability while building on the reliable foundation of our class-leading Warrior 1400 scalper. Its highly aggressive screen can accept bofor bars, finger screens, woven mesh and punch plates.

User benefits include jack up screen facilities to aid media access and hydraulic screen angle adjustment.

Features

• Output potential up to 500 tph (551 US tph)
• Heavy duty, incline belt feeder with rigid one piece hopper
• Heavy duty, adjustable angle, grease lubricated 2 bearing, 2 deck screen box
• Jack up screen facility to aid mesh changes
• Screen walkway & access steps
• Hydraulic folding conveyors with excellent stockpiling capacity
• Engine protection shutdown system
• Rapid set-up & shutdown time
• Two speed tracks
• Collection conveyor raise feature
• Reversible side conveyors

Key Specifications

• Weight 27,500kgs (60,627lbs)
• Transport width 2.75m (9')
• Transport length 14.21m (46'7")
• Transport height 3.2m (10'6")
• Working width 12.59m (41'3")
• Working length 14.20m (46'7")
• Working height 4.57m (15') hopper extended
• Working height  hopper extended, with chassis riser
• Screenunit 3.6m x 1.25m (12' x 4.5')
