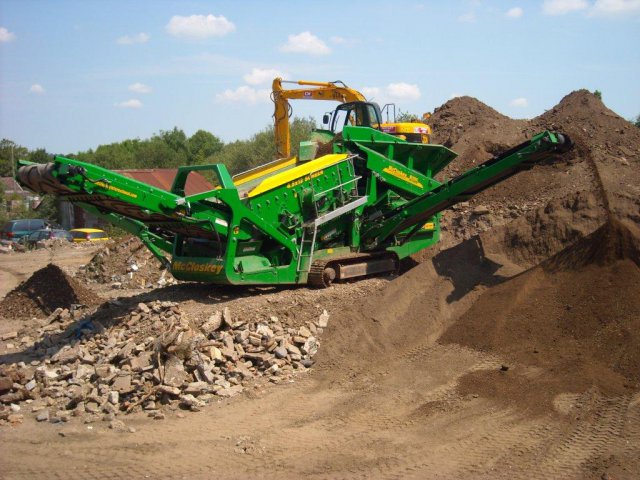

The McCloskey R105 High Energy Durable Screener provides the best solution for operators who don't require the capacity of the larger screener models. Built around McCloskey International's highly productive High Energy Screenbox, the R105 screener has all the class leading features of the R-Range, such as high quality components, durability and reliability. Offering the highest stockpile and largest screening area in its class while meeting the European transport regulation width, the R105 represents the most cost effective productivity and quality on the market in a versatile and mobile package.


  • High Energy 4.5’ x 12’ (3660 mm x 1370mm) Screenbox
  • 7.8 yd³ (6 m³) hopper equipped with a 48” (1200 mm) heavy duty 4 ply belt
  • Large open engine bay allows easy access
  • Discharging oversize material at 11’ 4” (3.45 m), the 48” (1200 mm) wide 3 ply belt allows for efficient stockpiling
  • Compact transportation size is perfect for contractors looking for highly portable mobile screening

Key Specifications

  • Engine: 100 HP (74.5 kW) Diesel
  • Transport Height: 10' 6" (3.20m)
  • Transport Width: 8' 4" (2.5m)
  • Transport Length: 42' 9" (13,035mm) - 48" (14,627mm)
  • Stockpile Height: 11' 4" (3.45m)
  • Weight:  50,700 lbs (23,000 kg) Belt feeder
